Product Details:
|
| Spinning Method: | Water Jet Loom | Weight: | 1870 KG |
|---|---|---|---|
| Power: | 3.4-3.8kw | Warranty: | 2 Years |
| Reed Amplitude: | 170-360 Cm | Rotational Speed: | Design Rotational Speed 1200 RPM/SPLIT |
| Nozzle Quantity: | 1-4 | Water Pump Quantity: | Single Pump Or Double Pump |
| Opening Device: | Flat Weave Opening Device,Cam Opening. Dobby Opening | Coil Feeder: | Electronic Or Mechanical |
| Yarn Range: | Max Yarn Width:6.5mm; Min Yarn Thickness:0.015mm | ||
| High Light: | Double Beam Water Jet Weaving Machine,Sulzer Water Jet Weaving Machine,1000RPM water jet textile machine |
||

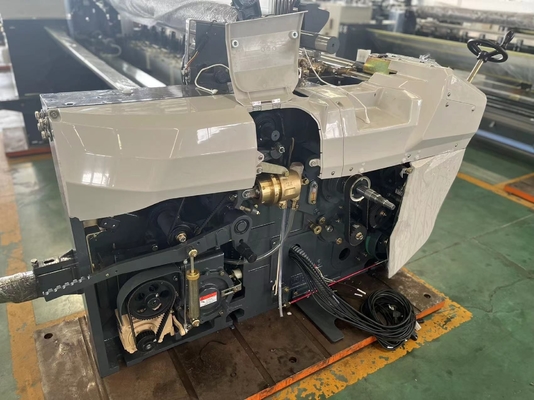

Double Beam Textile Water Jet Weaving Machine Sulzer 1000RPM Speed
| 1.Reed Space nominal∶190,210,230,280,340{cm) | |||
| 2.Wet selection: mechanical Cr electric feeder (Single or double nozle electric feederl | |||
| 3.Motor∶3.5KW. | |||
| Power: electromagnet brake pan; | |||
| 4.Running speed:1200RPM | |||
| 5.Weft insertion method: main nozzle+ auxiliary nozze, use unusual reed, electromagnetic control | |||
| 6.Shedding:crank, cam dobby | |||
| 7.Let-off:mechanical | |||
| 8.Selage∶ planetan gear | |||
| 9.Cutter.mechanical | |||
| 10.Aurto-stop on broken weft,2 optical feeler; broken warp:6 lines electic contact bar reason for auto will be displayed on | |||
| screen.4 color led light; others: auto stop on broken twist and trash yarns. |
